360 DASH application system
from 360 Yield Center
Boost starter performance while cutting starter costs
Increase the ROI on your starter fertilizer investment with the 360 DASH application system.

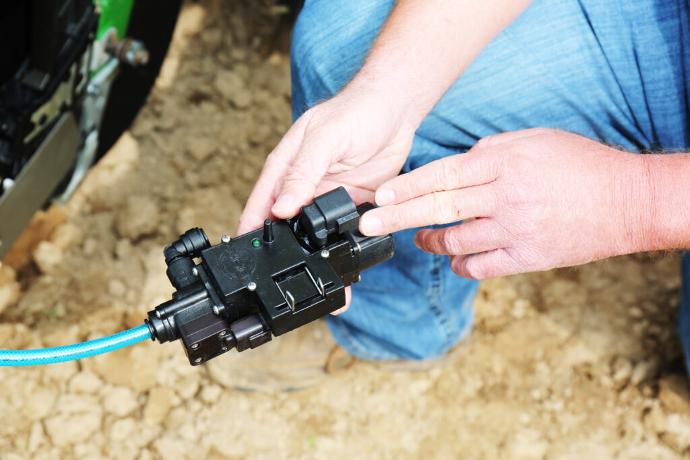

360 DASH lets you apply the maximum rate for yield response while trimming your starter volume per acre - and cost per acre - by 50% to 75%. Rather than a continuous stream of liquid fertilizer, the 360 DASH valve meters a two- or three-inch "dash" of fertilizer and positions it for rapid interception by seedling roots.
The "dash" is triggered by a passing seed. When the existing seed sensor detects a seed, 360 DASH fires a high-speed actuator. The 360 DASH needle valve controls the rate and pulses. Achieve accurate pulses of fertilizer at four to 10 mph and 2.5 to 15 GPA.

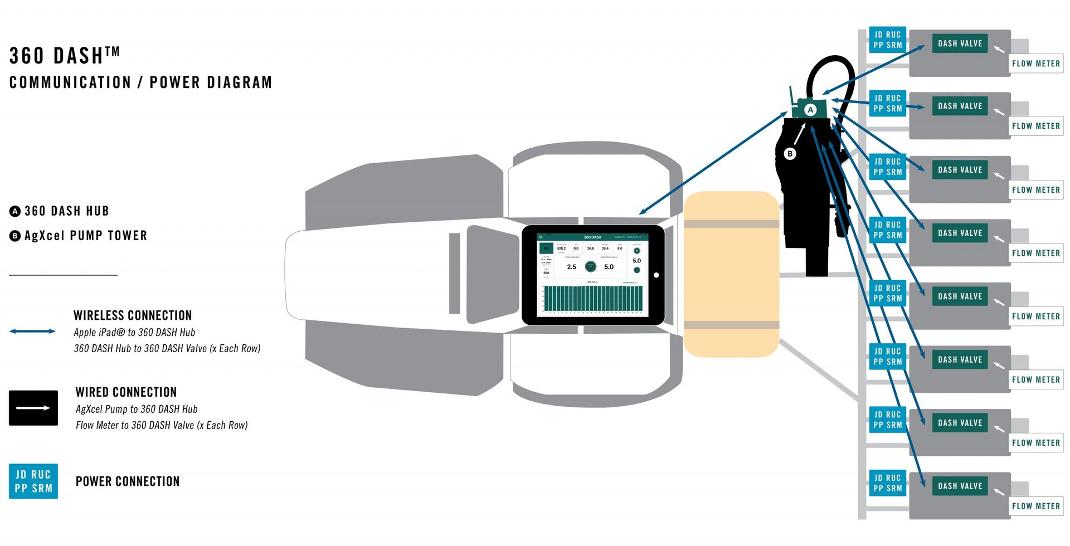

The 360 DASH system adapts to existing power and data communication architecture on Precision Planting and John Deere ExactEmerge high speed planters. An innovative, wireless WIFI communication system from each valve reduces harness cost and reliability issues.
360 DASH includes a flow meter and filter. This meter is accurate over a wide flow range (.025 - .65 GPM) and is compatible with common liquid products (water, 28%, 10-34-0, biologicals and more). Each flow meter communicates rate to the 360 DASH valve, then through the wireless communications hub, back to the 360 DASH control app in the cab.
Key features
- Adding nitrogen application to the planter eliminates separate, expensive application trips, and it puts nitrogen in the right place at the right time - during emergence and early plant growth.
- We've taken what we've learned from the 360 Y-DROP application placement system and adapted it to a system for the planter. The delivery tubes follow the coulter slot. Tension on the tubes keeps them in position over rough terrain and around contours.
- The shallow 3/4" placement eliminates the need for excessive weight or downforce. That eliminates risk of interference with the closing system or the row unit's gauge wheel and downforce system.
- 360 BANDIT is available for:
John Deere Max Emerge / John Deere 7000 / Kinze 2000 / Kinze 3000 / White 9000 / Harvest International Laser Pro 1
